Bilibili Message System Architecture Upgrade

Key Questions to Address

• High Data Volume vs. Performance Degradation
• Technically, larger datasets increase the likelihood of performance degradation.
• In the messaging business, however, heavy-data users are typically high‑impact creators (UPs). The business side does not accept technical downgrades for these users.
• Challenge: How to ensure robust performance for high‑impact users without compromising quality.
• 10× Traffic Surge Preparedness
• If message traffic grows tenfold, what strategies can ensure the service remains stable and responsive?

---

1. Current System Overview

Business Perspective

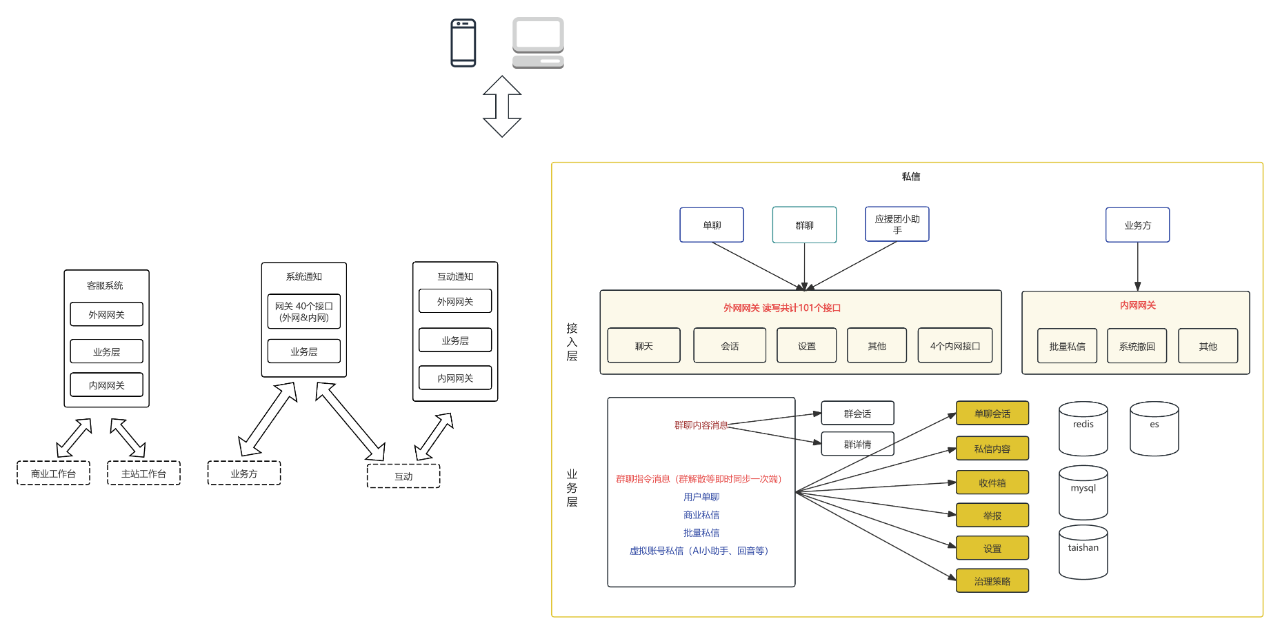

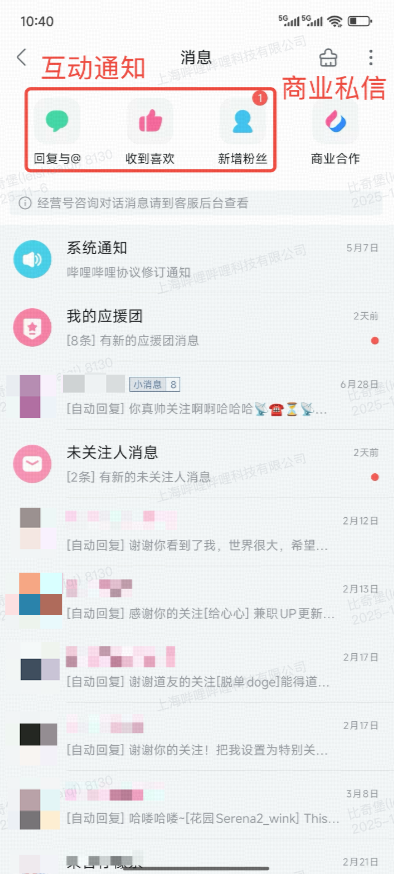

The server-side messaging system is split into four core business lines:

• Customer Service
• System Notifications
• Interaction Notifications
• Private Messages

Private Messages — Four Subtypes

• User One‑to‑One Chat
• B2C Bulk Private Messaging
• Group Chat

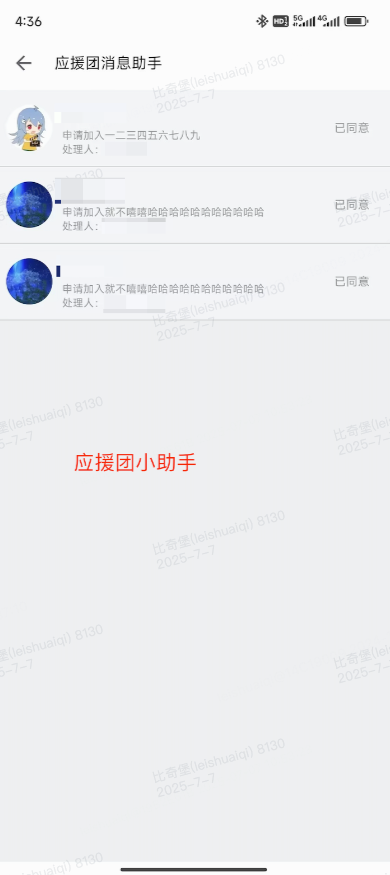

• Support Group Assistant

> ⚠ These four subtypes are not yet technically decoupled.

> One‑to‑one chats and bulk private messaging are already close to system capacity limits.

Observation: One‑to‑one messages have <10% send‑to‑delivery conversion rates (PV/UV), showing large optimization potential.

---

Technical Perspective — Core Concepts

Private Messaging Domain Concepts

• Conversation List: Sorted by chat partner, contains account info, latest message, unread count.
• Conversation Detail: State with a single person (receiver UID, sender UID, unread count, etc.).
• Conversation History: Timeline of content for both peers (one‑to‑one) or shared group.
• Inbox: KV mapping — maps send sequence to content ID.
• Message Content: Raw text + ID + state.
• Timeline Model: Time‑axis abstraction for sync, indexing, and storage.
• Read Diffusion: Group chat model — one write visible to many readers.
• Write Diffusion: One‑to‑one chat — updates both sender and receiver; in groups, ephemeral push notifications.

---

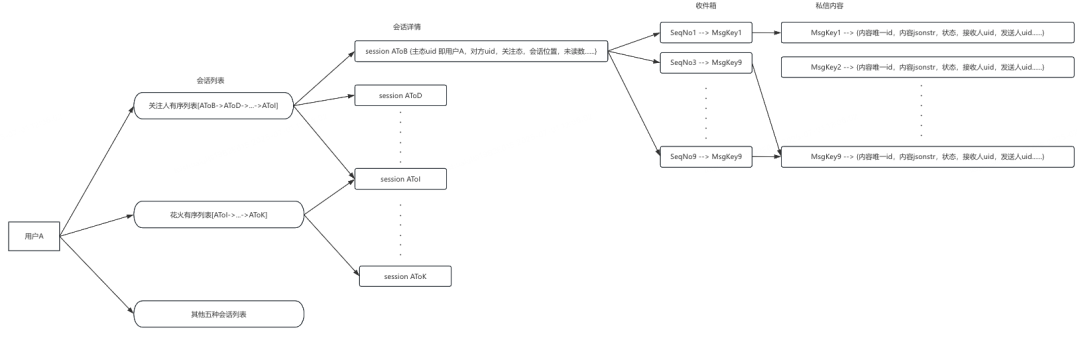

Core Concept Relationship Map

---

2. Current Issues

Slow Conversation Queries

Root Causes & Risks:

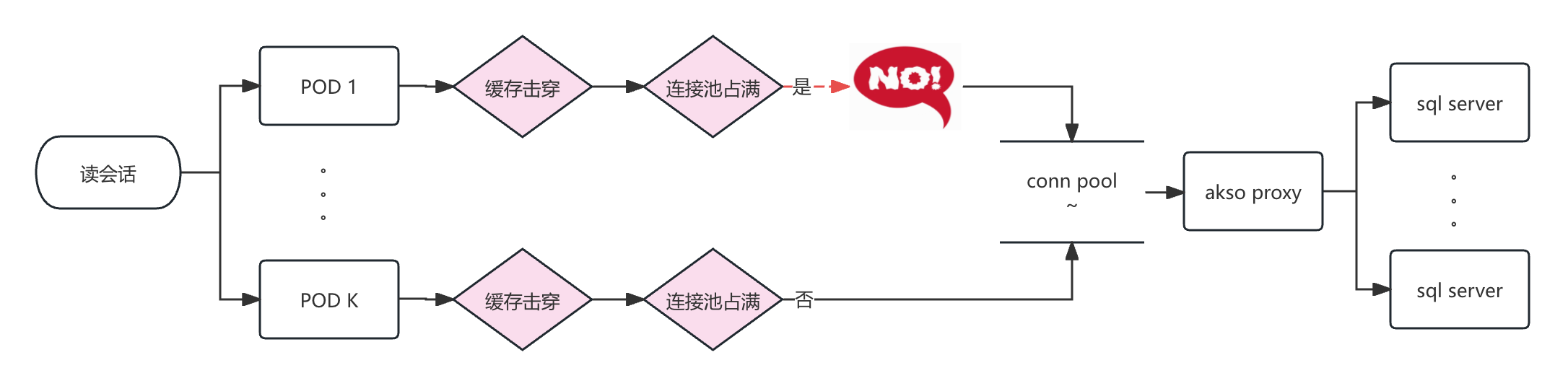

• Cache expiry forces queries to hit MySQL, causing latency spikes.
• MySQL limitations:
• Sharded by `uid % 1000 / 100` → skewed distribution for high‑volume accounts.
• Single table contains up to 32 M sessions; largest user: 200 M sessions.
• Hot accounts cause performance imbalance.
• MySQL buffer_pool limits → cold data on disk → multi-second queries.
• Nine non‑clustered indexes already in place → more indexes hurt write performance.

---

Private Message Content — Table & Write Limits

• ID scheme: timestamp in `msgkey` → quarter sharding; monthly sub‑tables.
• Projected 2025 total volume: ~10 B rows
• Monthly tables already at hundreds of millions.
• Peak write QPS limits mean event traffic cannot be fully absorbed.

---

Service-Side Code Coupling

• Four private message types share core send/delivery logic and storage.
• Tight coupling → resource competition, unpredictable degradation.

---

3. Upgrade Path

Optimization Objective:

Private messaging is data-intensive, mixing read-heavy (unread counts) and write-heavy (session updates) workloads. Needs domain decoupling & scalability.

---

Target Architecture

---

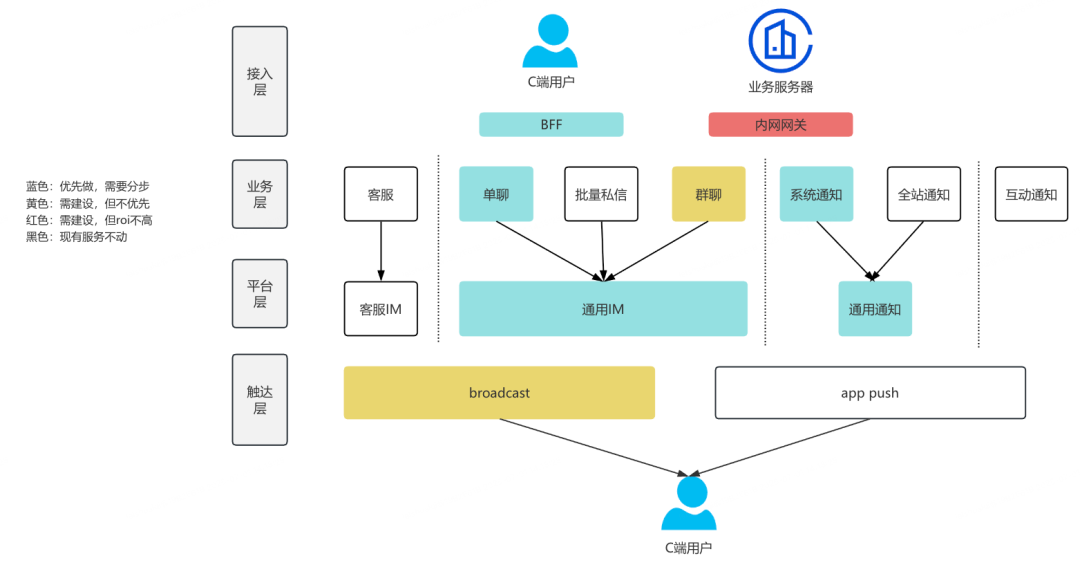

Domain Layers — Four-Tier Model

• Access Layer: toC BFF + gateway
• Business Layer: Complex query support
• Platform Layer: IM‑style, real‑time, sequential delivery
• Reach Layer: Long connections + push

---

Client-Side Cache Degradation

Design Principle:

Always display critical summaries — avoid blank message pages even under extreme failure modes.

---

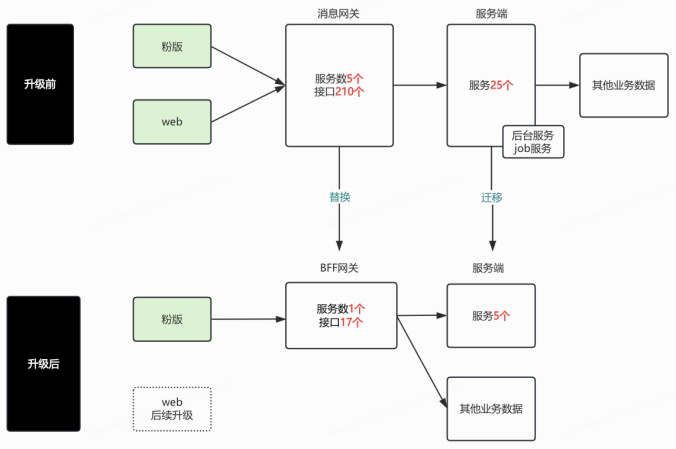

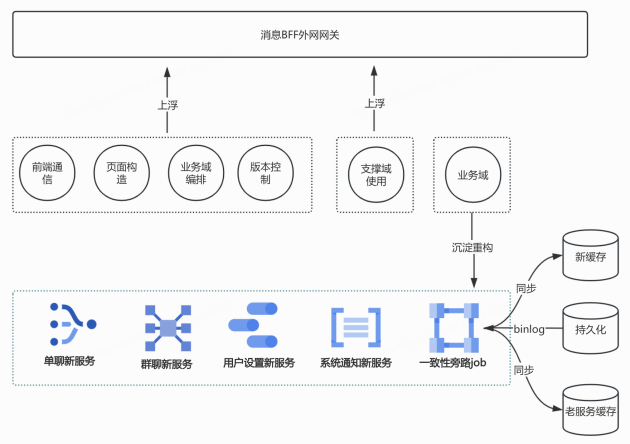

BFF Architecture Upgrade

• Abstracted services: Single Chat, Group Chat, System Notification, Interaction Notification, Message Settings
• Benefits:
• Reduced coupling
• Cache structure redesign
• MySQL index optimization
• Query latency drop by ×10

---

Server-Side Availability Upgrade

Business Layer:

• Cold/Hot Separation: Redis → Taishan → MySQL
• Read/Write Separation: 95% queries on MySQL replicas

Platform Layer:

• Snowflake ID timeline model
• Diffusion handling based on chat type

---

Single Chat Sessions

Proactive Cache Pre-Warming

• Capture homepage unread count events
• Asynchronously pre-build session cache for high-traffic accounts
• Taishan offline UID load + T+1 updates
• Hotspot monitoring → auto-trigger pre-warm

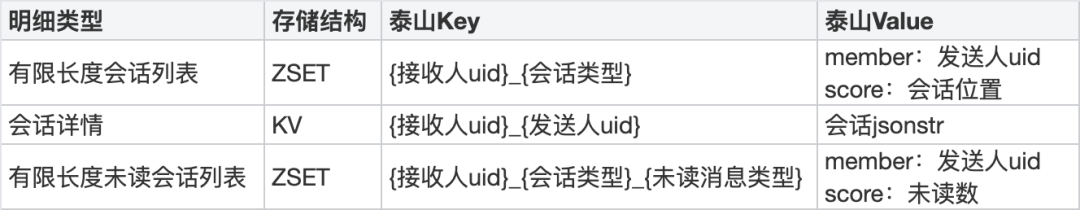

Taishan + MySQL Dual Persistence

• Redis: 24 h

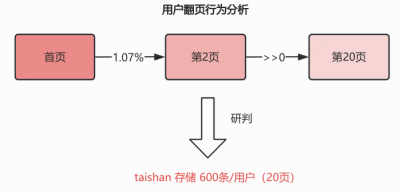

• Taishan: 600 entries/user (~20 pages)
• MySQL: cold fallback

---

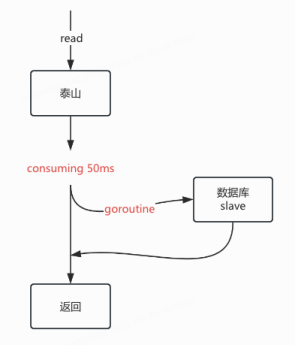

Hedged Backsourcing for Latency Optimization

• Redis miss → query Taishan + MySQL hedge
• Avoid long-tail delays
• Passive Taishan load on first miss

---

Consistency Guarantees

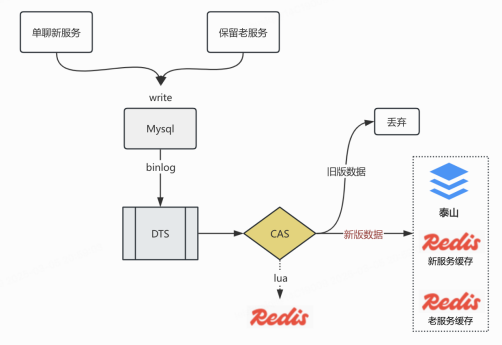

• Legacy service compatibility: binlog sync to new Redis/Taishan
• Challenges:
• Avoid duplicate consumption
• Preserve chronological order in binlogs
• Ensure low-latency writes
• Solution: Redis Lua CAS using `mtime` versioning

Performance:

• <1 s latency, 250 K records/s consumption capacity
• DTS delay <700 ms meets SLA

---

Inbox Upgrade

New Model: Redis + Taishan

• Redis: hot
• Taishan: full dataset + RANDOM read mode

---

Message Content Upgrade

• Separate single chat tables

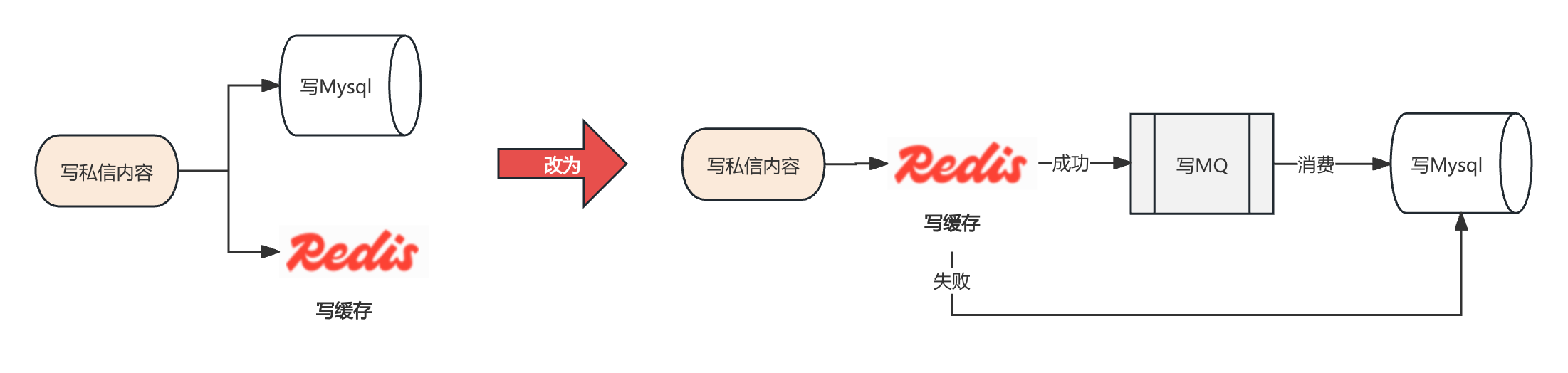

• Async MySQL writes

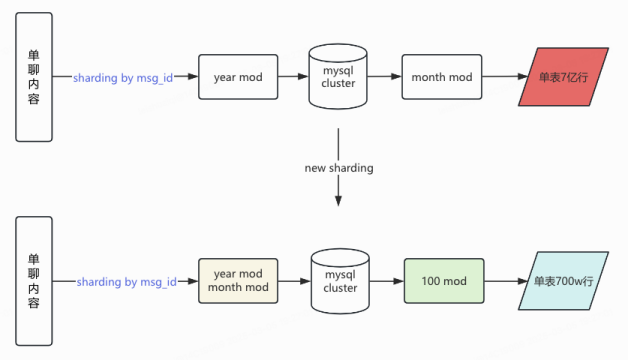

• Monthly sharding; 100 tables per DB
• Routing: parse `msgkey` timestamp → monthly shard → `msgkey % 100` table

> Expected single-table data shrink: 900 M → 9 M rows

---

Batch Private Messaging Optimization

• Daily channel
• High-priority channel:
• More topic partitions
• Scale consumption PODs
• Larger in-POD channel count
• Cache expansion
• Average send speed boost: 3.5 K → 30 K users/sec

---

4. Conclusion

Lessons Learned:

• Upgrades require iterative optimization
• Set achievable yet challenging goals
• Identify gaps between current vs. ideal state
• Prioritize smooth migration & coexistence of old/new systems
• Continuously monitor metrics & convergence progress

Final Thought: Private messaging architecture is a long-term design challenge — balancing performance, consistency, scalability, and business flexibility.

---
