Buffer in C Programming: Types, Examples, and Best Practices

Learn about buffers in C programming, their types, how stdio.h handles buffering, examples of usage, and best practices to prevent overflows.

Honghao Wang

— 4 min read
Buffer in C Programming: Types, Examples, and Best Practices

Introduction to Buffers in C Programming

In C programming, a buffer refers to a continuous block of memory used to hold data temporarily while it moves between two locations — such as between a program and an I/O device like the keyboard, monitor, or disk. Buffers improve input/output efficiency by reducing the number of expensive system calls.

They act as intermediate storage areas, helping to manage timing differences between data producers and consumers. Although the C standard library handles most buffering automatically through standard I/O functions, understanding buffers and buffer management is essential for optimizing performance and writing secure, stable programs — especially when working with files, sockets, or performance-critical code.

Introduction to Buffers in C Programming — buffer in c programming

---

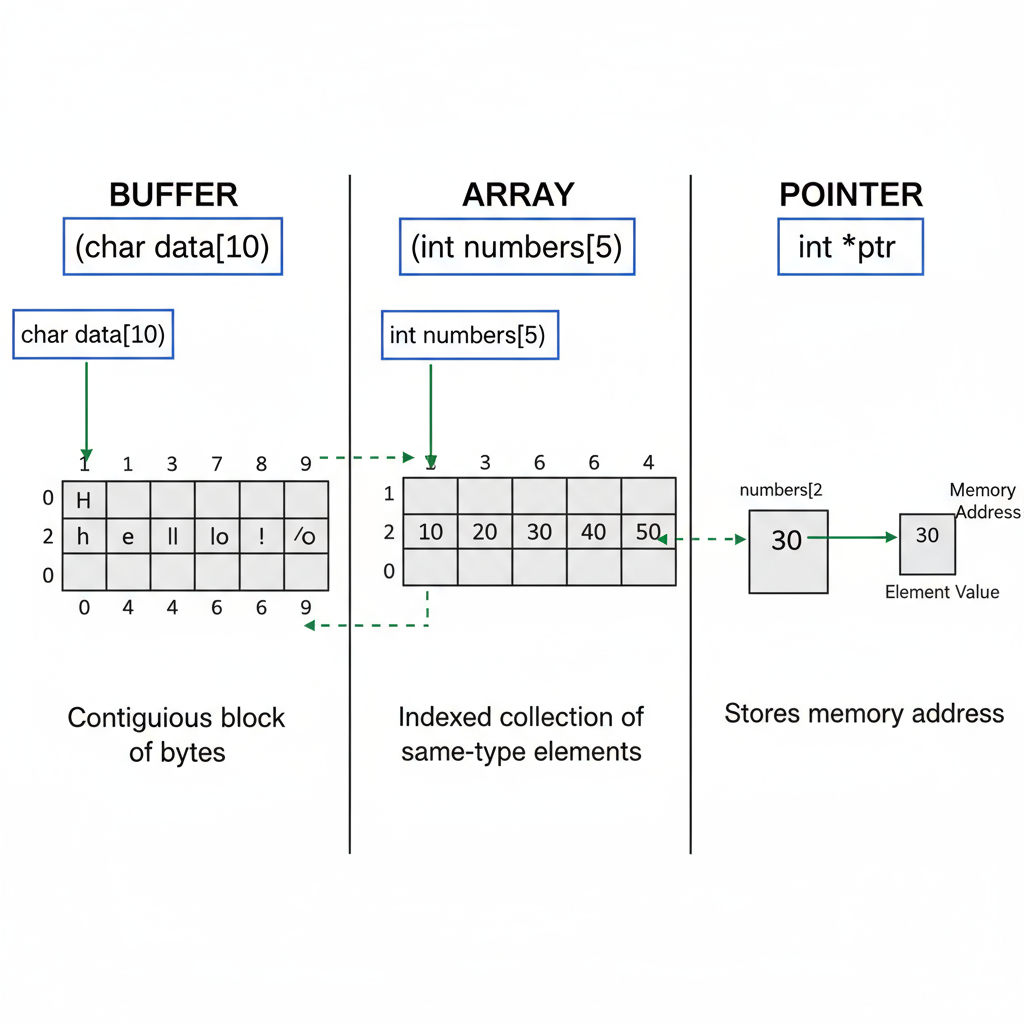

Difference Between Buffer, Array, and Pointer in C

Although buffers, arrays, and pointers in C can look similar, they have distinct roles:

  • Array: A collection of contiguous elements of the same type.
  • Example: `char arr[100];`
  • Pointer: A variable storing the memory address of another variable or memory block.
  • Example: `char *ptr;`
  • Buffer: A logical structure, often implemented as an array, used as temporary storage during communication or processing.

A buffer often combines an array with metadata such as current position. The term "buffer" generally emphasizes its role in I/O operations rather than its physical data structure.

---

Types of Buffers

The C standard library uses several buffer types depending on the data flow:

1. Input Buffer

Stores data from an input device before your program uses it.

Example: Keyboard input buffered before being processed via `getchar()`.

2. Output Buffer

Temporarily stores program output before sending it to an output device.

Example: `printf()` writes to an output buffer which then flushes to screen or file.

3. Intermediate Buffer

Holds data between two processing stages.

Example: Pipeline data passed between transformation functions.

3. Intermediate Buffer — buffer in c programming

---

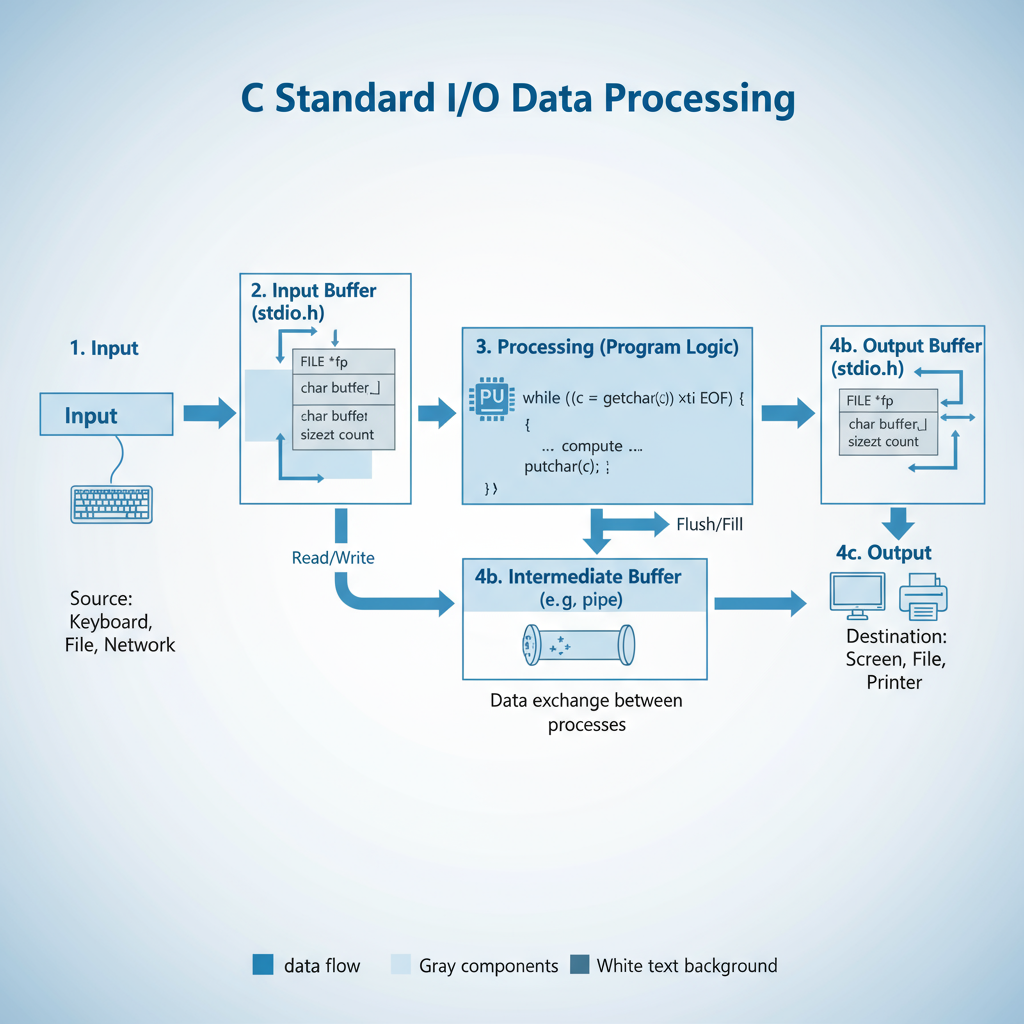

How Buffering Works in Standard I/O (`stdio.h`)

Functions in `stdio.h` such as `printf()`, `scanf()`, `getchar()`, and `fgets()` operate with buffers automatically.

When you use:

printf("Hello");

the string `"Hello"` is stored in a buffer until:

  • The buffer is full
  • A newline is encountered in line-buffered mode
  • You explicitly flush via `fflush()`
  • Program termination triggers a flush

This process cuts down on high-cost I/O calls and smooths CPU/device timing differences.

---

Buffer Modes in C

C defines three buffering modes for `FILE` streams:

Mode Description Typical Use Case
Fully Buffered Accumulates data in the buffer until full, then writes in bulk. File operations
Line Buffered Flushes buffer on newline or when full. Terminal I/O
Unbuffered No buffering; writes occur immediately. `stderr` for error messages

---

Examples of Buffer Usage with Standard I/O Functions

Using `getchar()` and the Input Buffer

#include
int main() {
    int c;
    printf("Enter a character: ");
    c = getchar(); // waits for keyboard input into the buffer
    printf("You entered: %c\n", c);
    return 0;
}

Output Buffer with `putchar()` and `printf()`

#include
int main() {
    putchar('A');             // written to the output buffer
    printf("Hello, Buffer!\n"); // newline causes flush
    return 0;
}

Safer Input using `fgets()`

#include
int main() {
    char buffer[50];
    printf("Enter your name: ");
    fgets(buffer, sizeof(buffer), stdin);
    printf("Hello, %s", buffer);
    return 0;
}

---

Buffer Overflow: Causes and Risks

A buffer overflow happens when more data is written to a buffer than it can hold, overwriting adjacent memory. This can cause:

  • Program crashes
  • Data corruption
  • Security vulnerabilities (e.g., arbitrary code execution)

Common causes include:

  • Ignoring buffer size limits when reading or writing
  • Off-by-one loop errors
  • Using unsafe, unbounded functions like `gets()`

---

Secure Coding Practices to Prevent Buffer Overflow

To reduce buffer overflow risk:

  1. Validate input length before placing data into a buffer.
  2. Use bounded functions like `fgets()` or `strncpy()` instead of unsafe counterparts.
  3. Apply bounds checking with constants and `sizeof()`.
  4. Dynamically allocate buffers when sizes vary.
  5. Utilize tools like `valgrind` or AddressSanitizer during development.

Example:

char dest[10];
strncpy(dest, userInput, sizeof(dest)-1);
dest[sizeof(dest)-1] = '\0'; // force null-termination

---

Customizing Buffer Size Using `setbuf()` and `setvbuf()`

You can configure buffering for `FILE` streams:

  • `setbuf(FILE stream, char buffer)` assigns a custom buffer or disables buffering if `buffer` is `NULL`.
  • `setvbuf(FILE stream, char buffer, int mode, size_t size)` sets buffering mode (`_IOFBF`, `_IOLBF`, `_IONBF`) and buffer size.

Example:

#include
int main() {
    char mybuf[1024];
    FILE *f = fopen("data.txt", "w");
    if (f) {
        setvbuf(f, mybuf, _IOFBF, sizeof(mybuf));
        fprintf(f, "Buffered data.\n");
        fclose(f);
    }
    return 0;
}

---

Common Mistakes and Debugging Tips in Buffer Handling

Typical mistakes:

  • Forgetting to flush buffers, resulting in missing output
  • Reading/writing beyond buffer capacity
  • Misunderstanding differences between buffered/unbuffered I/O
  • Expecting immediate output on a fully buffered stream

Debugging tips:

  • Use `fflush()` during debugging
  • Turn on compiler warnings (`-Wall`)
  • Check for buffer overflows with sanitizers
  • Print diagnostic messages to `stderr` to bypass output buffering
debugging-tips

---

Performance Implications of Buffering in File and Network Operations

Buffering boosts performance by minimizing expensive I/O operations:

  • File I/O: Decreases disk seeks and system call overhead
  • Network I/O: Larger blocks reduce packet fragmentation and increase throughput

However:

  • Excessively large buffers consume more memory
  • Buffers introduce latency in time-sensitive applications

Careful tuning of buffer size can strike a balance between performance and responsiveness.

---

Summary and Key Takeaways for Safe Buffer Management

  • Buffer in C programming is a temporary memory area that smooths I/O performance.
  • Distinguish clearly between arrays, pointers, and buffers.
  • Control and customize buffer modes where necessary.
  • Avoid unsafe functions and overflow risks through defensive coding.
  • Debug with awareness of buffering behavior and performance trade-offs.

Mastering buffer concepts not only improves program efficiency but also strengthens security and reliability. Apply these principles in your C projects to write code that is fast, safe, and maintainable.
